Trak Racer V2 Pro 2CH 200W Low-Frequency Class-D Amplifier and Bass Shaker Kit

Trak Racer Pro Bass Shaker & Stereo Amplifier Kit – Ultimate Simulation Vibration & Immersion System

Upgrade your simulator or gaming setup with the Trak Racer Pro Bass Shaker & Amplifier Kit, a high-end tactile feedback system engineered to deliver deep, powerful low-frequency vibration for sim racing, flight simulation, FPS gaming, and music. This system allows you to feel engine rumble, exhaust vibration, road texture, kerbs, bumps, gunfire, explosions, and bass notes — not just hear them.

Designed by simulation specialists since 2008 and trusted through partnerships with the Alpine Formula 1 Team, Porsche, and Airbus Aircraft, this kit reflects motorsport-grade engineering refined for immersive simulation environments.

---

Designed for Simulation, Gaming & Low-Frequency Immersion

Unlike basic vibration motors or cheap mono bass shaker kits, the Trak Racer system combines a high-power tactile transducer with a true stereo Class-D amplifier to reproduce low-frequency effects accurately and without distortion.

• Sim Racing: engine RPM, exhaust resonance, kerbs, bumps, wheel slip
• Flight Simulation: runway rumble, turbulence, touchdown impact
• FPS & Gaming: gunfire, explosions, recoil, environmental effects
• Music & Media: deep bass you can physically feel

Perfect for titles such as iRacing, Assetto Corsa, Assetto Corsa Competizione, rFactor 2, F1 23 / F1 24, Microsoft Flight Simulator, DCS World, Call of Duty, Battlefield, and other first-person shooter and simulation games.

---

What’s Included in the Kit

• 1 × TR-BSA100 High-Power Bass Shaker (Tactile Transducer)
• 1 × 200W Trak Racer Amplifier (TR-BSA-KIT-200)
• 2 m / 6.374 ft 16-Gauge Heavy-Duty Speaker Wire
  Low-resistance cable designed to handle high current and deliver clean, distortion-free low-frequency power
• Audio input connection cables (RCA / 3.5 mm)

Expandable System:
• Amplifier supports an optional second bass shaker for increased immersion
• Compatible with multiple Trak Racer mounting solutions for simulator seats, cockpit frames, rigs, and motion platforms

---

High-Power Bass Shaker – Feel the Engine, Exhaust & Impacts

The included TR-BSA100 bass shaker is designed to move serious mass. With 50W nominal power and 100W peak handling, it delivers strong, physical vibration across a wide 20–120 Hz frequency range, making it ideal for deep engine notes, exhaust rumble, impacts, and low-frequency effects that smaller shakers cannot reproduce.

---

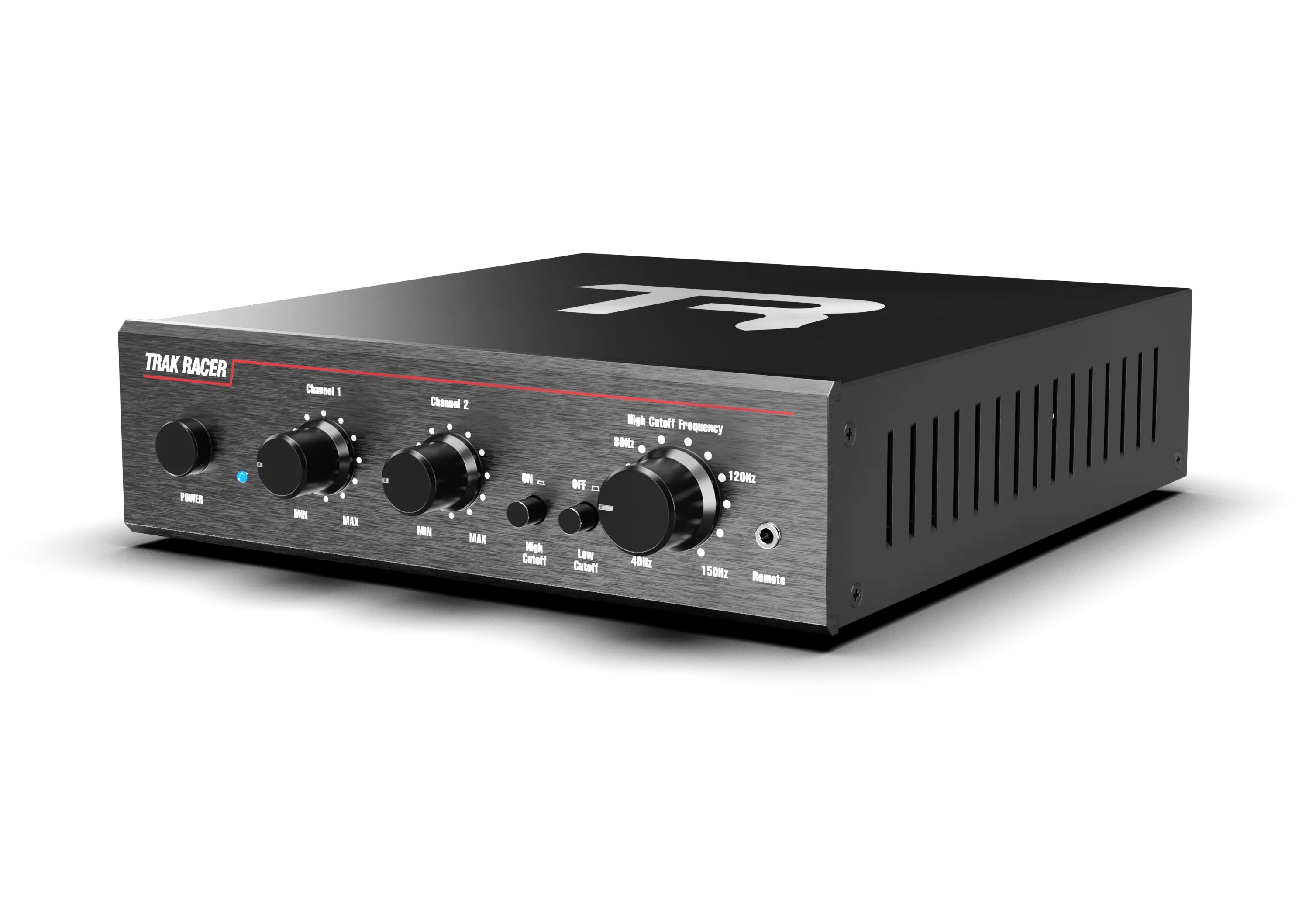

Stereo Amplifier – Precision Control, Not a Cheap Mono Amp

At the heart of the system is the 200W Trak Racer Amplifier (TR-BSA-KIT-200). Unlike entry-level mono solutions, this amplifier provides true 2-channel output, adjustable low-pass filtering, and efficient Class-D power delivery.

With 100W RMS @ 4Ω / 50W RMS @ 8Ω output power, you can precisely tune vibration strength and frequency response, ensuring clean, controlled tactile feedback that dramatically improves realism in simulation and gaming.

---

Specifications – 200W Trak Racer Amplifier (TR-BSA-KIT-200)

Output channels	2
Input channels	2 (RCA + 3.5mm audio jack)
Output power	100W RMS @ 4Ω / 50W RMS @ 8Ω
Input sensitivity	250 mV
Frequency response	30–200 Hz ±3 dB
Variable low pass adjustment	50–200 Hz
Total harmonic distortion	1% (stereo), 0.05% (mono)
Signal to noise ratio	95 dB @ 100 Hz A-weighted
Power requirements	110–240 V AC
Max power consumption	313 W
Stand-by power rating	10 W
Auto turn-on sensitivity	10 mV
Amplifier Class	Class-D

---

Specifications – TR-BSA100 Bass Shaker

Product Model	TR-BSA100
Type	Low-Frequency Tactile Transducer
Dimensions	Ø155 × 51 mm
Impedance	4 Ω
Nominal Power	50 W
Maximum Power	100 W
Frequency Range	20 – 120 Hz
Weight	1.25 kg

Feel the engine. Feel the bumps. Feel the shots. Feel the bass.
Built by sim racers. Proven in motorsport. Engineered for immersion.
